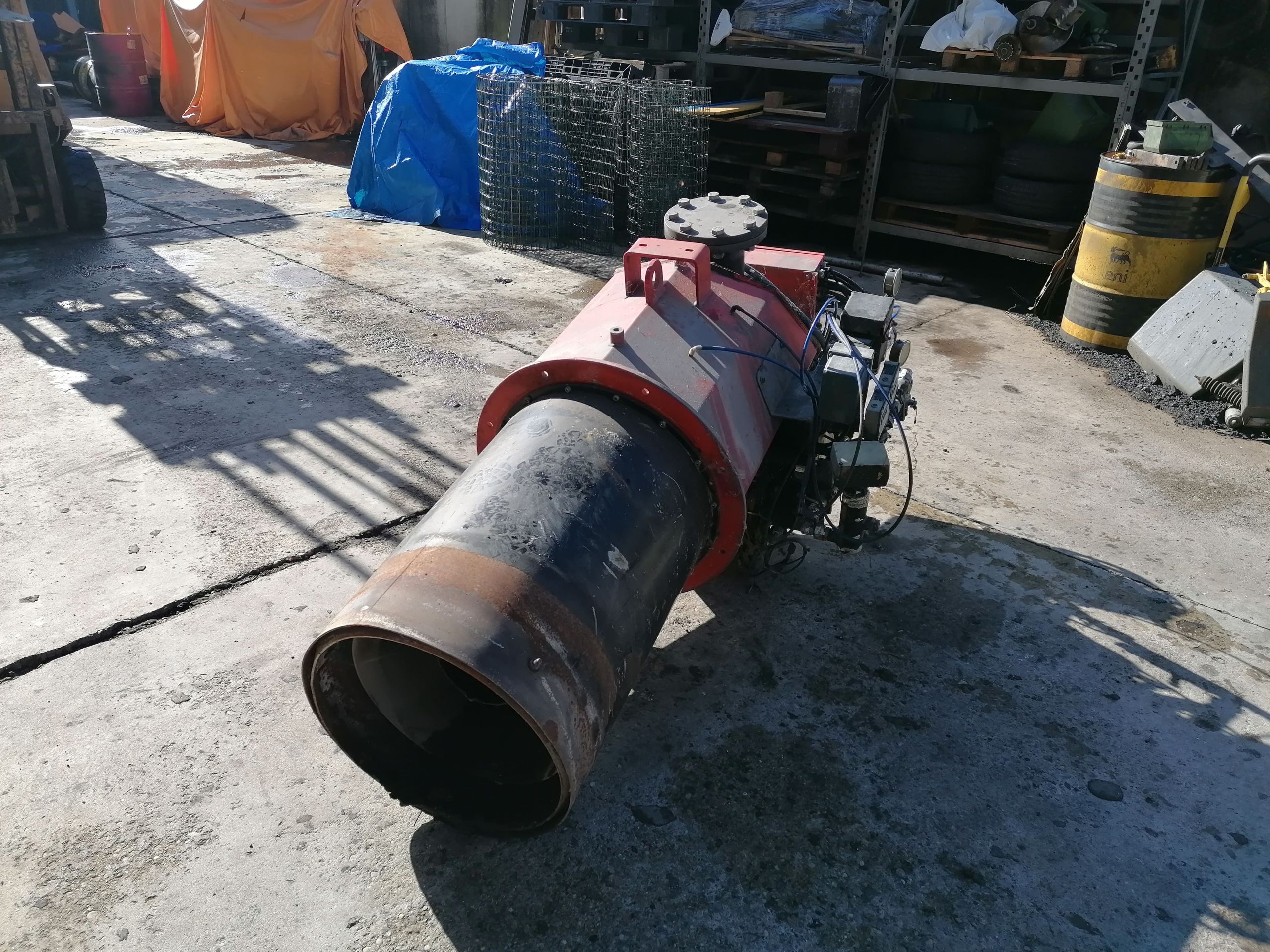

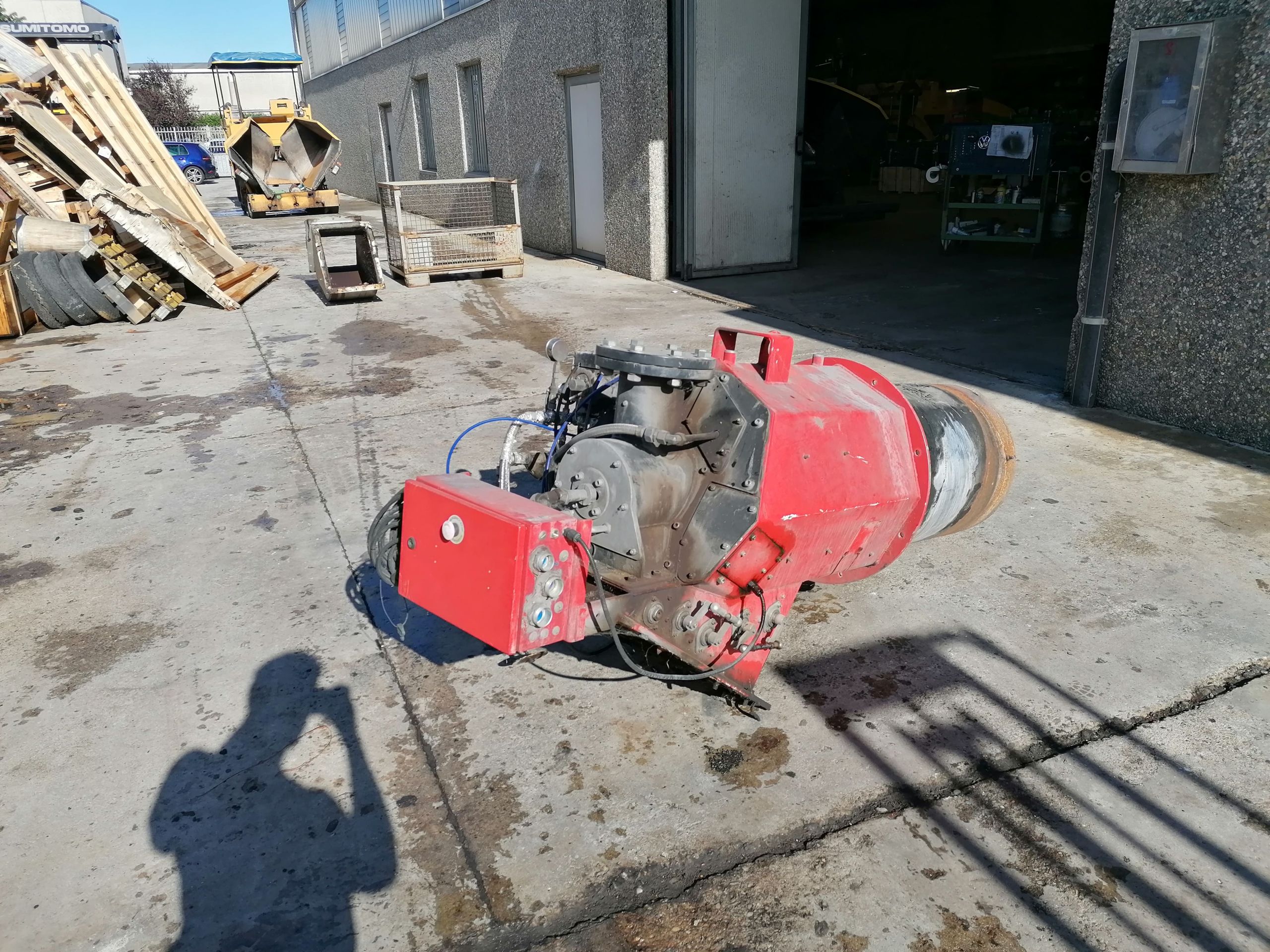

BURNER DIBV 3.11 AMMANN

Technical Data
DIBV 3. 11 with oil fuel, working pressure 3 Bar, power 11MW.

Consumption (measured with burner installed at sea level)
Methane : 1094
LPG nM3 : 430
DIESEL Kg./h : 927
Fuel oil Kg./h : 985

Functional data

DATI CARATTERISTICI Combustion air Liquid fuel Methane LPG
MINIMUM PRESSURE 80 mBar 1 Bar 150 mBar
MAXIMUM PRESSURE 120 mBar 3,5 Bar 250
WORKING PRESSURE 80 – 120 mBar 2,5 – 2,8 Bar 150 – 200 mBar
PRESSURE ADJUSTMENT 130 mBar 3,5 Bar (*)
TEMPERATURE 100 – 130 °C (**)

(*) Pressure switch positioned on discharge side
(**) Only for BTZ (fuel oil)
